Some more results of the signal decoding

parent f29f3f46
Branches
Tags
No related merge requests found
Hide whitespace changes
Inline Side-by-side
Showing
with 210 additions and 0 deletions
.gitignore
+ 0
− 0
View file @ 71900048
No preview for this file type
2017-05-01_Paketdefinition.xlsx 0 → 100644
+ 0
− 0
View file @ 71900048
File added
DokuWiki_Signals_Formatted.txt 0 → 100644
+ 68
− 0
View file @ 71900048
^Description ^^Heating^Water^Repeat^Battery^^Signal ^
|Heating ON, Water OFF || ON | - | | || ''00000000\ 00000000\ 01111110\ 10110110\ 01101111\ 00000000\ 00000100\ 00000000\ 00000000\ 00010001\ 00101101\ 00000000\ 10111110\ 1\ 10000010\ 11111111\ 000000000'' |
|Heating ON, Water OFF (Rep.) || ON | - | X | || ''00000000\ 00000000\ 01111110\ 10110110\ 01101111\ 00000000\ 00000100\ 00000000\ 10000000\ 00010001\ 00101101\ 00000000\ 10111110\ 1\ 00000010\ 11111111\ 000000000'' |
|Heating OFF, Water OFF || - | - | | || ''00000000\ 00000000\ 01111110\ 10110110\ 01101111\ 00000000\ 00000100\ 00000000\ 00000000\ 00010001\ 00000000\ 00000000\ 10111110\ 1\ 10101111\ 11111111\ 000000000'' |
|Heating OFF, Water OFF (Rep.) || - | - | X | || ''00000000\ 00000000\ 01111110\ 10110110\ 01101111\ 00000000\ 00000100\ 00000000\ 10000000\ 00010001\ 00000000\ 00000000\ 10111110\ 1\ 00101111\ 11111111\ 000000000'' |
|Heating ON, Water ON || ON | ON | | || ''00000000\ 00000000\ 01111110\ 10110110\ 01101111\ 00000000\ 00000100\ 00000000\ 00000000\ 00000001\ 00101101\ 00000000\ 10111110\ 1\ 10010010\ 11111111\ 000000000'' |
|Heating ON, Water ON (Rep.) || ON | ON | X | || ''00000000\ 00000000\ 01111110\ 10110110\ 01101111\ 00000000\ 00000100\ 00000000\ 10000000\ 00000001\ 00101101\ 00000000\ 10111110\ 1\ 00010010\ 11111111\ 000000000'' |
|Heating OFF, Water ON || - | ON | | || ''00000000\ 00000000\ 01111110\ 10110110\ 01101111\ 00000000\ 00000100\ 00000000\ 00000000\ 00000001\ 00000000\ 00000000\ 10111110\ 1\ 10111111\ 11111111\ 000000000'' |
|Heating OFF, Water ON (Rep.) || - | ON | X | || ''00000000\ 00000000\ 01111110\ 10110110\ 01101111\ 00000000\ 00000100\ 00000000\ 10000000\ 00000001\ 00000000\ 00000000\ 10111110\ 1\ 00111111\ 11111111\ 000000000'' |
|Heating ON, Water OFF, Battery LOW || ON | - | | LOW || ''00000000\ 00000000\ 01111110\ 10110110\ 01101111\ 00000000\ 00000100\ 00000000\ 00000000\ 00010001\ 00101101\ 10000000\ 10111110\ 1\ 00000010\ 11111111\ 000000000'' |
|Heating ON, Water OFF, Battery LOW (Rep.) || ON | - | X | LOW || ''00000000\ 00000000\ 01111110\ 10110110\ 01101111\ 00000000\ 00000100\ 00000000\ 10000000\ 00010001\ 00101101\ 10000000\ 10111110\ 1\ 11111100\ 11111111\ 000000000'' |
|Heating OFF, Water OFF, Battery LOW || - | - | | LOW || ''00000000\ 00000000\ 01111110\ 10110110\ 01101111\ 00000000\ 00000100\ 00000000\ 00000000\ 00010001\ 00000000\ 10000000\ 10111110\ 1\ 00101111\ 11111111\ 000000000'' |
|Heating OFF, Water OFF, Battery LOW (Rep.)|| - | - | X | LOW || ''00000000\ 00000000\ 01111110\ 10110110\ 01101111\ 00000000\ 00000100\ 00000000\ 10000000\ 00010001\ 00000000\ 10000000\ 10111110\ 1\ 11001111\ 11111111\ 000000000'' |
|Heating ON, Water ON, Battery LOW || ON | ON | | LOW || ''00000000\ 00000000\ 01111110\ 10110110\ 01101111\ 00000000\ 00000100\ 00000000\ 00000000\ 00000001\ 00101101\ 10000000\ 10111110\ 1\ 00010010\ 11111111\ 000000000'' |
|Heating ON, Water ON, Battery LOW (Rep) || ON | ON | X | LOW || ''00000000\ 00000000\ 01111110\ 10110110\ 01101111\ 00000000\ 00000100\ 00000000\ 10000000\ 00000001\ 00101101\ 10000000\ 10111110\ 1\ 11100010\ 11111111\ 000000000'' |
|Heating OFF, Water ON, Battery LOW || - | ON | | LOW || ''00000000\ 00000000\ 01111110\ 10110110\ 01101111\ 00000000\ 00000100\ 00000000\ 00000000\ 00000001\ 00000000\ 10000000\ 10111110\ 1\ 00111111\ 11111111\ 000000000'' |
|Heating OFF, Water ON, Battery LOW (Rep.) || - | ON | X | LOW || ''00000000\ 00000000\ 01111110\ 10110110\ 01101111\ 00000000\ 00000100\ 00000000\ 10000000\ 00000001\ 00000000\ 10000000\ 10111110\ 1\ 11011111\ 11111111\ 000000000'' |
^Description ^^Signal ^
|Heating\ ON,\ Water\ OFF || ''00000000\ 00000000\ 01111110\ 10110110\ 01101111\ 00000000\ 00000100\ 00000000\ 00000000\ 00010001\ 00101101\ 00000000\ 10111110\ 1\ 10000010\ 11111111\ 000000000'' |
|Heating\ ON,\ Water\ OFF\ (Rep.) || ''00000000\ 00000000\ 01111110\ 10110110\ 01101111\ 00000000\ 00000100\ 00000000\ 10000000\ 00010001\ 00101101\ 00000000\ 10111110\ 1\ 00000010\ 11111111\ 000000000'' |
|Heating\ OFF,\ Water\ OFF || ''00000000\ 00000000\ 01111110\ 10110110\ 01101111\ 00000000\ 00000100\ 00000000\ 00000000\ 00010001\ 00000000\ 00000000\ 10111110\ 1\ 10101111\ 11111111\ 000000000'' |
|Heating\ OFF,\ Water\ OFF\ (Rep.) || ''00000000\ 00000000\ 01111110\ 10110110\ 01101111\ 00000000\ 00000100\ 00000000\ 10000000\ 00010001\ 00000000\ 00000000\ 10111110\ 1\ 00101111\ 11111111\ 000000000'' |
|Heating\ ON,\ Water\ ON || ''00000000\ 00000000\ 01111110\ 10110110\ 01101111\ 00000000\ 00000100\ 00000000\ 00000000\ 00000001\ 00101101\ 00000000\ 10111110\ 1\ 10010010\ 11111111\ 000000000'' |
|Heating\ ON,\ Water\ ON\ (Rep.) || ''00000000\ 00000000\ 01111110\ 10110110\ 01101111\ 00000000\ 00000100\ 00000000\ 10000000\ 00000001\ 00101101\ 00000000\ 10111110\ 1\ 00010010\ 11111111\ 000000000'' |
|Heating\ OFF,\ Water\ ON || ''00000000\ 00000000\ 01111110\ 10110110\ 01101111\ 00000000\ 00000100\ 00000000\ 00000000\ 00000001\ 00000000\ 00000000\ 10111110\ 1\ 10111111\ 11111111\ 000000000'' |
|Heating\ OFF,\ Water\ ON\ (Rep.) || ''00000000\ 00000000\ 01111110\ 10110110\ 01101111\ 00000000\ 00000100\ 00000000\ 10000000\ 00000001\ 00000000\ 00000000\ 10111110\ 1\ 00111111\ 11111111\ 000000000'' |
|Heat.\ ON,\ Water\ OFF,\ Batt.\ LOW || ''00000000\ 00000000\ 01111110\ 10110110\ 01101111\ 00000000\ 00000100\ 00000000\ 00000000\ 00010001\ 00101101\ 10000000\ 10111110\ 1\ 00000010\ 11111111\ 000000000'' |
|Heat.\ ON,\ W.\ OFF,\ Batt.\ LOW\ (Rep.) || ''00000000\ 00000000\ 01111110\ 10110110\ 01101111\ 00000000\ 00000100\ 00000000\ 10000000\ 00010001\ 00101101\ 10000000\ 10111110\ 1\ 11111100\ 11111111\ 000000000'' |
|Heat.\ OFF,\ W.\ OFF,\ Batt.\ LOW || ''00000000\ 00000000\ 01111110\ 10110110\ 01101111\ 00000000\ 00000100\ 00000000\ 00000000\ 00010001\ 00000000\ 10000000\ 10111110\ 1\ 00101111\ 11111111\ 000000000'' |
|Heat.\ OFF,\ W.\ OFF,\ Batt.\ LOW\ (Rep.)|| ''00000000\ 00000000\ 01111110\ 10110110\ 01101111\ 00000000\ 00000100\ 00000000\ 10000000\ 00010001\ 00000000\ 10000000\ 10111110\ 1\ 11001111\ 11111111\ 000000000'' |
|Heat.\ ON,\ W.\ ON,\ Batt.\ LOW || ''00000000\ 00000000\ 01111110\ 10110110\ 01101111\ 00000000\ 00000100\ 00000000\ 00000000\ 00000001\ 00101101\ 10000000\ 10111110\ 1\ 00010010\ 11111111\ 000000000'' |
|Heat.\ ON,\ W.\ ON,\ Batt.\ LOW\ (Rep) || ''00000000\ 00000000\ 01111110\ 10110110\ 01101111\ 00000000\ 00000100\ 00000000\ 10000000\ 00000001\ 00101101\ 10000000\ 10111110\ 1\ 11100010\ 11111111\ 000000000'' |
|Heat.\ OFF,\ W.\ ON,\ Batt.\ LOW || ''00000000\ 00000000\ 01111110\ 10110110\ 01101111\ 00000000\ 00000100\ 00000000\ 00000000\ 00000001\ 00000000\ 10000000\ 10111110\ 1\ 00111111\ 11111111\ 000000000'' |
|Heat.\ OFF,\ W.\ ON,\ Batt.\ LOW\ (Rep.) || ''00000000\ 00000000\ 01111110\ 10110110\ 01101111\ 00000000\ 00000100\ 00000000\ 10000000\ 00000001\ 00000000\ 10000000\ 10111110\ 1\ 11011111\ 11111111\ 000000000'' |
^Description ^Heat.^Wat.^Rep.^Bat.| ''Byte1\ 2\ \ 3\ \ 4\ \ 5\ \ 6\ \ 7\ \ 8\ \ 9\ 10\ 11\ 12\ 13\ _\ 14\ 15\ 16'' |
|Heating ON, Water OFF | ON | - | | | ''0x00\ 00\ 7E\ 6D\ F6\ 00\ 20\ 00\ 00\ 88\ B4\ 00\ 7D\ 1\ 41\ FF\ 00'' |
|Heating ON, Water OFF (Rep.) | ON | - | X | | ''0x00\ 00\ 7E\ 6D\ F6\ 00\ 20\ 00\ 01\ 88\ B4\ 00\ 7D\ 1\ 40\ FF\ 00'' |
|Heating OFF, Water OFF | - | - | | | ''0x00\ 00\ 7E\ 6D\ F6\ 00\ 20\ 00\ 00\ 88\ 00\ 00\ 7D\ 1\ F5\ FF\ 00'' |
|Heating OFF, Water OFF (Rep.) | - | - | X | | ''0x00\ 00\ 7E\ 6D\ F6\ 00\ 20\ 00\ 01\ 88\ 00\ 00\ 7D\ 1\ F4\ FF\ 00'' |
|Heating ON, Water ON | ON | ON | | | ''0x00\ 00\ 7E\ 6D\ F6\ 00\ 20\ 00\ 00\ 80\ B4\ 00\ 7D\ 1\ 49\ FF\ 00'' |
|Heating ON, Water ON (Rep.) | ON | ON | X | | ''0x00\ 00\ 7E\ 6D\ F6\ 00\ 20\ 00\ 01\ 80\ B4\ 00\ 7D\ 1\ 48\ FF\ 00'' |
|Heating OFF, Water ON | - | ON | | | ''0x00\ 00\ 7E\ 6D\ F6\ 00\ 20\ 00\ 00\ 80\ 00\ 00\ 7D\ 1\ FD\ FF\ 00'' |
|Heating OFF, Water ON (Rep.) | - | ON | X | | ''0x00\ 00\ 7E\ 6D\ F6\ 00\ 20\ 00\ 01\ 80\ 00\ 00\ 7D\ 1\ FC\ FF\ 00'' |
|Heat. ON, Wt. OFF, Batt. LOW | ON | - | | LOW | ''0x00\ 00\ 7E\ 6D\ F6\ 00\ 20\ 00\ 00\ 88\ B4\ 01\ 7D\ 1\ 40\ FF\ 00'' |
|Heat. ON, Wt. OFF, Batt. LOW (Rep.) | ON | - | X | LOW | ''0x00\ 00\ 7E\ 6D\ F6\ 00\ 20\ 00\ 01\ 88\ B4\ 01\ 7D\ 1\ 3F\ FF\ 00'' |
|Heat. OFF, Wt. OFF, Batt. LOW | - | - | | LOW | ''0x00\ 00\ 7E\ 6D\ F6\ 00\ 20\ 00\ 00\ 88\ 00\ 01\ 7D\ 1\ F4\ FF\ 00'' |
|Heat. OFF, Wt. OFF, Batt. LOW (Rep.)| - | - | X | LOW | ''0x00\ 00\ 7E\ 6D\ F6\ 00\ 20\ 00\ 01\ 88\ 00\ 01\ 7D\ 1\ F3\ FF\ 00'' |
|Heat. ON, Wt. ON, Batt. LOW | ON | ON | | LOW | ''0x00\ 00\ 7E\ 6D\ F6\ 00\ 20\ 00\ 00\ 80\ B4\ 01\ 7D\ 1\ 48\ FF\ 00'' |
|Heat. ON, Wt. ON, Batt. LOW (Rep) | ON | ON | X | LOW | ''0x00\ 00\ 7E\ 6D\ F6\ 00\ 20\ 00\ 01\ 80\ B4\ 01\ 7D\ 1\ 47\ FF\ 00'' |
|Heat. OFF, Wt. ON, Batt. LOW | - | ON | | LOW | ''0x00\ 00\ 7E\ 6D\ F6\ 00\ 20\ 00\ 00\ 80\ 00\ 01\ 7D\ 1\ FC\ FF\ 00'' |
|Heat. OFF, Wt. ON, Batt. LOW (Rep.) | - | ON | X | LOW | ''0x00\ 00\ 7E\ 6D\ F6\ 00\ 20\ 00\ 01\ 80\ 00\ 01\ 7D\ 1\ FB\ FF\ 00'' |
|Heat. ON, Wt. OFF, Batt. LOW | ON | - | | LOW | ''0x00\ 00\ 7E\ 6D\ F6\ 00\ 20\ 00\ 00\ 88\ B4\ 01\ 7D\ 1\ 40\ FF\ 00'' |
|Heat. ON, Wt. OFF, Batt. LOW (Rep.) | ON | - | X | LOW | ''0x00\ 00\ 7E\ 6D\ F6\ 00\ 20\ 00\ 01\ 88\ B4\ 01\ 7D\ 1\ 3F\ FF\ 00'' |
|Heating ON, Water OFF | ON | - | | | ''0x00\ 00\ 7E\ 6D\ F6\ 00\ 20\ 00\ 00\ 88\ B4\ 00\ 7D\ 1\ 41\ FF\ 00'' |
|Heating ON, Water OFF (Rep.) | ON | - | X | | ''0x00\ 00\ 7E\ 6D\ F6\ 00\ 20\ 00\ 01\ 88\ B4\ 00\ 7D\ 1\ 40\ FF\ 00'' |
00000000\ 00000000\ 01111110\ 10110110\ 01101111\ 00000000\ 00000100\ 00000000\ 00000000\ 00000001\ 01111100\ 00000000\ 010111110\ 11111011\ 01111111\ 110000000
00000000\ 00000000\ 01111110\ 10110110\ 01101111\ 00000000\ 00000100\ 00000000\ 10000000\ 00000001\ 01111100\ 00000000\ 010111110\ 10111110\ 01111111\ 110000000
00000000\ 00000000\ 01111110\ 10110110\ 01101111\ 00000000\ 00000100\ 00000000\ 00000000\ 00000001\ 01111100\ 00000000\ 10111111\ 11111101\ 11111111\ 0000000
00000000\ 00000000\ 01111110\ 10110110\ 01101111\ 00000000\ 00000100\ 00000000\ 10000000\ 00000001\ 01111100\ 00000000\ 10111111\ 01111101\ 11111111\ 0000000

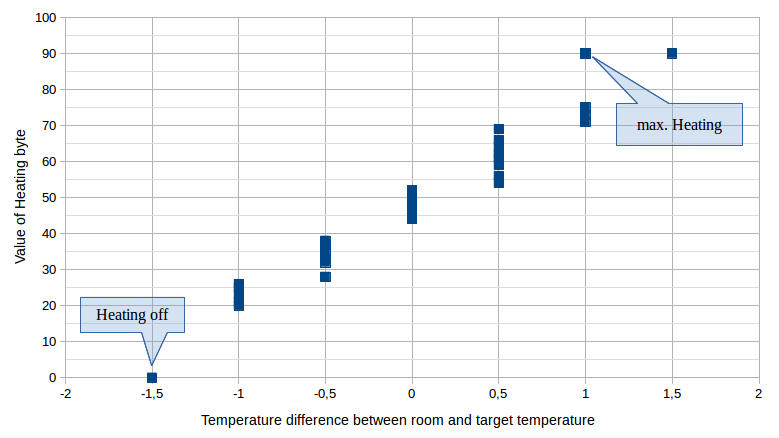

Images/Vaillant_CalorMatic340f_HeatingByte_TempDifference.png 0 → 100644
+ 0
− 0
View file @ 71900048
Images/Vaillant_CalorMatic340f_HeatingByte_TempDifference.png

23.6 KiB

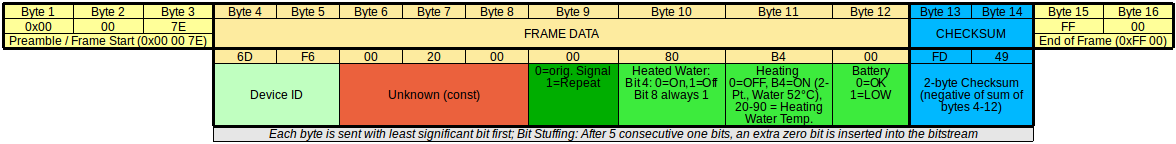

Images/Vaillant_CalorMatic340f_PacketStructure_Horizontal.png 0 → 100644
+ 0
− 0
View file @ 71900048
Images/Vaillant_CalorMatic340f_PacketStructure_Horizontal.png

35.3 KiB

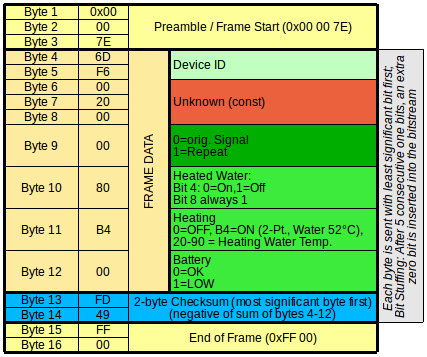

Images/Vaillant_CalorMatic340f_PacketStructure_Vertical.png 0 → 100644
+ 0
− 0
View file @ 71900048
Images/Vaillant_CalorMatic340f_PacketStructure_Vertical.png

46.9 KiB

Vaillant_calormatic340f.ALL.signals.decoded 0 → 100644
+ 88
− 0
View file @ 71900048
Normal Heating / Water On/Off Functionality:
============================================
Heizung EIN, Wasser AUS 00000000000000000111111010110110011011110000000000000100000000000000000000010001001011010000000010111110110000010111111110000000000
Heizung EIN, Wasser AUS* 00000000000000000111111010110110011011110000000000000100000000001000000000010001001011010000000010111110100000010111111110000000000
Heizung AUS, Wasser AUS 00000000000000000111111010110110011011110000000000000100000000000000000000010001000000000000000010111110110101111111111110000000000
Heizung AUS, Wasser AUS 00000000000000000111111010110110011011110000000000000100000000001000000000010001000000000000000010111110100101111111111110000000000
Heizung EIN, Wasser EIN 00000000000000000111111010110110011011110000000000000100000000000000000000000001001011010000000010111110110010010111111110000000000
Heizung EIN, Wasser EIN* 00000000000000000111111010110110011011110000000000000100000000001000000000000001001011010000000010111110100010010111111110000000000
Heizung AUS, Wasser EIN 00000000000000000111111010110110011011110000000000000100000000000000000000000001000000000000000010111110110111110111111111000000000
Heizung AUS, Wasser EIN* 00000000000000000111111010110110011011110000000000000100000000001000000000000001000000000000000010111110100111110111111111000000000
Heizung EIN, Wasser AUS , Batt 00000000000000000111111010110110011011110000000000000100000000000000000000010001001011011000000010111110100000010111111110000000000
Heizung EIN, Wasser AUS*, Batt 00000000000000000111111010110110011011110000000000000100000000001000000000010001001011011000000010111110111110110011111111000000000
Heizung AUS, Wasser AUS , Batt 00000000000000000111111010110110011011110000000000000100000000000000000000010001000000001000000010111110100101111111111110000000000
Heizung AUS, Wasser AUS*, Batt 00000000000000000111111010110110011011110000000000000100000000001000000000010001000000001000000010111110111001111111111110000000000
Heizung EIN, Wasser EIN , Batt 00000000000000000111111010110110011011110000000000000100000000000000000000000001001011011000000010111110100010010111111110000000000
Heizung EIN, Wasser EIN*, Batt 0000000000000000011111101011011001101111000000000000010000000000100000000000000100101101100000001011111011110001011111111000000000
Heizung AUS, Wasser EIN , Batt 00000000000000000111111010110110011011110000000000000100000000000000000000000001000000001000000010111110100111110111111111000000000
Heizung AUS, Wasser EIN*, Batt 00000000000000000111111010110110011011110000000000000100000000001000000000000001000000001000000010111110111011111111111110000000000
Z/R Analogue modus:
===================
2017-04-26 21:15:41.607 00000000000000000111111010110110011011110000000000000100000000000000000000000001101111000000000010111110100000011111111110000000000
2017-04-26 21:15:41.607 00000000000000000111111010110110011011110000000000000100000000001000000000000001101111000000000010111110111110110111111111000000000
2017-04-26 21:16:15.423 00000000000000000111111010110110011011110000000000000100000000000000000000000001100100100000000010111110100101101111111110000000000
2017-04-26 21:16:15.424 00000000000000000111111010110110011011110000000000000100000000001000000000000001100100100000000010111110111001101111111110000000000
2017-04-26 21:16:49.231 00000000000000000111111010110110011011110000000000000100000000000000000000000001010110100000000010111110111000101111111110000000000
2017-04-26 21:16:49.231 00000000000000000111111010110110011011110000000000000100000000001000000000000001010110100000000010111110101000101111111110000000000
2017-04-26 21:17:19.641 00000000000000000111111010110110011011110000000000000100000000000000000000000001010000100000000010111110111011101111111110000000000
2017-04-26 21:17:19.641 00000000000000000111111010110110011011110000000000000100000000001000000000000001010000100000000010111110101011101111111110000000000
2017-04-26 21:18:13.652 00000000000000000111111010110110011011110000000000000100000000001000000000000001101000100000000010111110111101101111111110000000000
2017-04-26 21:19:17.868 00000000000000000111111010110110011011110000000000000100000000000000000000000001000111000000000010111110110100011111111110000000000
2017-04-26 21:19:17.869 00000000000000000111111010110110011011110000000000000100000000001000000000000001000111000000000010111110100100011111111110000000000
2017-04-26 21:19:34.776 00000000000000000111111010110110011011110000000000000100000000000000000000000001010101000000000010111110111001011111111110000000000
2017-04-26 21:19:34.777 00000000000000000111111010110110011011110000000000000100000000001000000000000001010101000000000010111110101001011111111110000000000
2017-04-26 21:20:15.294 00000000000000000111111010110110011011110000000000000100000000000000000000000001011110000000000010111110111110101111111111000000000 # 23.5C
2017-04-26 21:20:15.294 00000000000000000111111010110110011011110000000000000100000000001000000000000001011110000000000010111110101111011111111110000000000 # 23.5C
2017-04-26 21:20:38.992 0000000000000000011111101011011001101111000000000000010000000000000000000000000100110100000000001011111011000101111111111?000000000 # 24C
2017-04-26 21:20:38.993 00000000000000000111111010110110011011110000000000000100000000001000000000000001001101000000000010111110100001011111111110000000000 # 24C
2017-04-26 21:21:22.904 00000000000000000111111010110110011011110000000000000100000000000000000000000001100111000000000010111110100100011111111110000000000 # 24.5C
2017-04-26 21:21:22.904 00000000000000000111111010110110011011110000000000000100000000001000000000000001100111000000000010111110111000011111111110000000000 # 24.5C
2017-04-26 21:21:43.213 00000000000000000111111010110110011011110000000000000100000000000000000000000001111000100000000010111110101101101111111110000000000 # 25C
2017-04-26 21:21:43.213 00000000000000000111111010110110011011110000000000000100000000001000000000000001111000100000000010111110110101101111111110000000000 # 25C
2017-04-26 21:25:14.771 00000000000000000111111010110110011011110000000000000100000000000000000000000001010011000000000010111110111010011111111110000000000
2017-04-26 21:25:14.771 00000000000000000111111010110110011011110000000000000100000000001000000000000001010011000000000010111110101010011111111110000000000
Z/R Analogue modus, Water OFF:
==============================
2017-04-26 23:13:02.084 0000000000000000011111101011011001101111000000000000010000000000000000000001000100011100000000001011111011011110111111111000000000 # Temp: 22.5?, Target 23?
2017-04-26 23:13:02.085 0000000000000000011111101011011001101111000000000000010000000000100000000001000100011100000000001011111010011110111111111000000000 # Temp: 22.5?, Target 23? WH
2017-04-26 23:13:25.682 00000000000000000111111010110110011011110000000000000100000000000000000000010001101010000000000010111110100000111111111110000000000 # Temp: 23C, Target 22
2017-04-26 23:13:25.683 000000000000000001111110101101100110111100000000000001000000000010000000000100011010100000000000101111101111101011111111110000000000 # Temp: 23C, Target 22 WH
2017-04-26 23:15:24.025 00000000000000000111111010110110011011110000000000000100000000000000000000010001000001000000000010111110110101011111111110000000000 # Temp: 23C, Target 22.5
2017-04-26 23:15:24.025 00000000000000000111111010110110011011110000000000000100000000001000000000010001000001000000000010111110100101011111111110000000000 # Temp: 23C, Target 22.5 WH
2017-04-26 23:15:57.834 0000000000000000011111101011011001101111000000000000010000000000000000000001000110110100000000001011111010001001111111111000000000 # Temp: 23C, Target 23
2017-04-26 23:15:57.834 00000000000000000111111010110110011011110000000000000100000000001000000000010001101101000000000010111110111100011111111110000000000 # Temp: 23C, Target 23 WH
2017-04-26 23:16:14.631 00000000000000000111111010110110011011110000000000000100000000000000000000010001110111000000000010111110101011101111111110000000000 # Temp: 23C, Target 23.5
2017-04-26 23:16:14.631 00000000000000000111111010110110011011110000000000000100000000001000000000010001110111000000000010111110110011101111111110000000001 # Temp: 23C, Target 23.5 WH
2017-04-26 23:17:52.666 0000000000000000011111101011011001101111000000000000010000000000000000000001000110010010000000001011111010011010111111111000000000 # Temp: 23C, Target 24
2017-04-26 23:17:52.667 0000000000000000011111101011011001101111000000000000010000000000100000000001000110010010000000001011111011101010111111111000000000 # Temp: 23C, Target 24 WH
2017-04-26 23:16:48.451 0000000000000000011111101011011001101111000000000000010000000000000000000001000101011010000000001011111011101100111111111000000000 # Temp: 23C, Target 24.5
2017-04-26 23:16:48.452 0000000000000000011111101011011001101111000000000000010000000000100000000001000101011010000000001011111010101100111111111000000000 # Temp: 23C, Target 24.5 WH
Diagnosis Mode:
===============
Ch ON 00000000000000000111111010110110011011110000000000000100000000000000000000000001010011000000000010111110111010011111111110000000000
Ch ON (WH) 00000000000000000111111010110110011011110000000000000100000000001000000000000001010011000000000010111110101010011111111110000000000
RF Test ON 0000000000000000011111101111101111101111101000000001111101110000000000001111101111101111101111101011011001101111000001000000000001000000000000000001111100000100111111111000000000
RF Test ON (WH) 0000000000000000011111101111101111101111101000000001111101110000000010001111101111101111101111101011011001101111000001000000000001000000000000000001111101111000111111111000000000
Vaillant_calormatic340f.ZR1_signals 0 → 100644
+ 54
− 0
View file @ 71900048
2017-04-26 21:15:41.607 00000000000000000111111010110110011011110000000000000100000000000000000000000001101111000000000010111110100000011111111110000000000
2017-04-26 21:15:41.607 00000000000000000111111010110110011011110000000000000100000000001000000000000001101111000000000010111110111110110111111111000000000
2017-04-26 21:16:15.423 00000000000000000111111010110110011011110000000000000100000000000000000000000001100100100000000010111110100101101111111110000000000
2017-04-26 21:16:15.424 00000000000000000111111010110110011011110000000000000100000000001000000000000001100100100000000010111110111001101111111110000000000
2017-04-26 21:16:49.231 00000000000000000111111010110110011011110000000000000100000000000000000000000001010110100000000010111110111000101111111110000000000
2017-04-26 21:16:49.231 00000000000000000111111010110110011011110000000000000100000000001000000000000001010110100000000010111110101000101111111110000000000
2017-04-26 21:17:19.641 00000000000000000111111010110110011011110000000000000100000000000000000000000001010000100000000010111110111011101111111110000000000
2017-04-26 21:17:19.641 00000000000000000111111010110110011011110000000000000100000000001000000000000001010000100000000010111110101011101111111110000000000
2017-04-26 21:18:13.652 00000000000000000111111010110110011011110000000000000100000000001000000000000001101000100000000010111110111101101111111110000000000
2017-04-26 21:19:17.868 00000000000000000111111010110110011011110000000000000100000000000000000000000001000111000000000010111110110100011111111110000000000
2017-04-26 21:19:17.869 00000000000000000111111010110110011011110000000000000100000000001000000000000001000111000000000010111110100100011111111110000000000
2017-04-26 21:19:34.776 00000000000000000111111010110110011011110000000000000100000000000000000000000001010101000000000010111110111001011111111110000000000
2017-04-26 21:19:34.777 00000000000000000111111010110110011011110000000000000100000000001000000000000001010101000000000010111110101001011111111110000000000
2017-04-26 21:20:15.294 00000000000000000111111010110110011011110000000000000100000000000000000000000001011110000000000010111110111110101111111111000000000 # 23.5C
2017-04-26 21:20:15.294 00000000000000000111111010110110011011110000000000000100000000001000000000000001011110000000000010111110101111011111111110000000000 # 23.5C
2017-04-26 21:20:38.992 0000000000000000011111101011011001101111000000000000010000000000000000000000000100110100000000001011111011000101111111111?000000000 # 24C
2017-04-26 21:20:38.993 00000000000000000111111010110110011011110000000000000100000000001000000000000001001101000000000010111110100001011111111110000000000 # 24C
2017-04-26 21:21:22.904 00000000000000000111111010110110011011110000000000000100000000000000000000000001100111000000000010111110100100011111111110000000000 # 24.5C
2017-04-26 21:21:22.904 00000000000000000111111010110110011011110000000000000100000000001000000000000001100111000000000010111110111000011111111110000000000 # 24.5C
2017-04-26 21:21:43.213 00000000000000000111111010110110011011110000000000000100000000000000000000000001111000100000000010111110101101101111111110000000000 # 25C
2017-04-26 21:21:43.213 00000000000000000111111010110110011011110000000000000100000000001000000000000001111000100000000010111110110101101111111110000000000 # 25C
2017-04-26 21:25:14.771 00000000000000000111111010110110011011110000000000000100000000000000000000000001010011000000000010111110111010011111111110000000000
2017-04-26 21:25:14.771 00000000000000000111111010110110011011110000000000000100000000001000000000000001010011000000000010111110101010011111111110000000000
SIGNALS known:
2017-04-23 22:27:54.963 00000000000000000111111010110110011011110000000000000100000000000000000000010001001011010000000010111110110000010111111110000000000
2017-04-23 22:27:54.964 00000000000000000111111010110110011011110000000000000100000000001000000000010001001011010000000010111110100000010111111110000000000
2017-04-23 22:27:54.964 00000000000000000111111010110110011011110000000000000100000000000000000000010001000000000000000010111110110101111111111110000000000
2017-04-23 22:27:54.964 00000000000000000111111010110110011011110000000000000100000000001000000000010001000000000000000010111110100101111111111110000000000
2017-04-23 22:27:54.965 00000000000000000111111010110110011011110000000000000100000000000000000000000001001011010000000010111110110010010111111110000000000
2017-04-23 22:27:54.965 00000000000000000111111010110110011011110000000000000100000000001000000000000001001011010000000010111110100010010111111110000000000
2017-04-23 22:27:54.965 00000000000000000111111010110110011011110000000000000100000000000000000000000001000000000000000010111110110111110111111111000000000
2017-04-23 22:27:54.966 00000000000000000111111010110110011011110000000000000100000000001000000000000001000000000000000010111110100111110111111111000000000
2017-04-23 22:27:54.966 00000000000000000111111010110110011011110000000000000100000000000000000000010001001011011000000010111110100000010111111110000000000
2017-04-23 22:27:54.966 00000000000000000111111010110110011011110000000000000100000000001000000000010001001011011000000010111110111110110011111111000000000
2017-04-23 22:27:54.967 00000000000000000111111010110110011011110000000000000100000000000000000000010001000000001000000010111110100101111111111110000000000
2017-04-23 22:27:54.967 00000000000000000111111010110110011011110000000000000100000000001000000000010001000000001000000010111110111001111111111110000000000
2017-04-23 22:27:54.967 00000000000000000111111010110110011011110000000000000100000000000000000000000001001011011000000010111110100010010111111110000000000
2017-04-23 22:27:54.967 0000000000000000011111101011011001101111000000000000010000000000100000000000000100101101100000001011111011110001011111111000000000
2017-04-23 22:27:54.968 00000000000000000111111010110110011011110000000000000100000000000000000000000001000000001000000010111110100111110111111111000000000
2017-04-23 22:27:54.968 00000000000000000111111010110110011011110000000000000100000000001000000000000001000000001000000010111110111011111111111110000000000
0% or .
You are about to add 0 people to the discussion. Proceed with caution.
Please register or to comment
